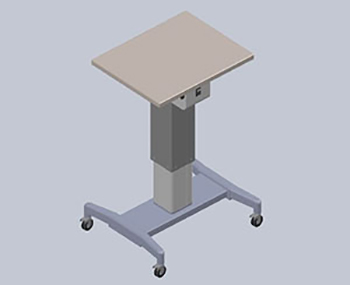

SG 550
Top Size: 500*400 mm Capacity: 1 Instruments
FEATURES
- Affordable Instrument delivery table
- Electric infinitely variable height adjustment

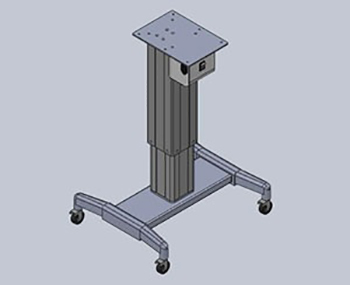

- Assembly kit designed to position lift at center or off center position
- Durable, scratch resistant laminated table top
- Shipment contains 4 stands and 4 castors
Other models on the basis of Top Size

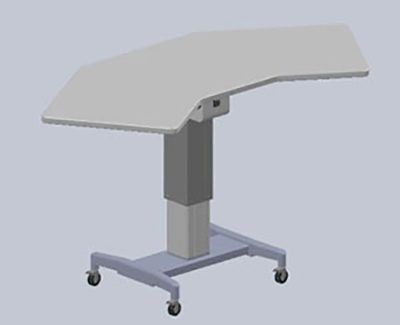

SG 555
Top Size: 710*1450 mm
Capacity : Up To 4 Instrument

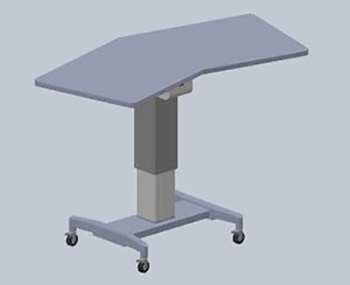

SG 560
Top Size: 610*1170 mm
Capacity :Up To 3 Instrument

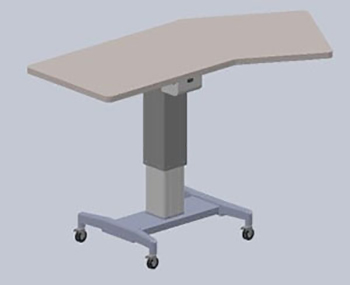

SG 565
Top Size: 685*1270 mm
Capacity : Up To 4 Instrument

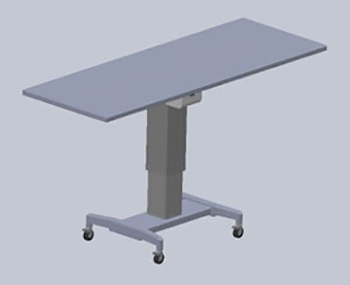

SG 570
Top Size: 510*1420 mm
Capacity : Up To 4 Instrument
| Technical Data | SG 550 |
|---|---|
| Voltage | 230 / 110 V |
| Nominal frequency | 50/60 Hz |
| Base dimensions | 450 x 540 mm |
| Vertical lift | 200 mm |
| Table height min | 635 mm |
| Table height max | 835 mm |
| Table Weight | 18 kg |
| Max load (weight placed center) | 50 kg |
FEATURES

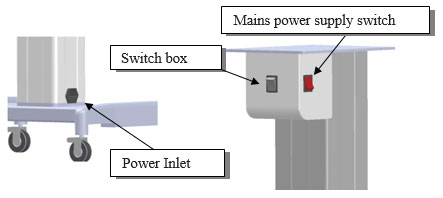

- IEC power inlet, At the bottom of the mobile column is installed the mains supply socket with two fuses 4AT
- 1 IEC power outlets, integrated in the upper part of the lift
- Switch integrated in the upper part of lift
- 110 voltage available
- All metal parts are powder coated
- Special table top sizes upon request
